Enjoy incredible 8K video and immersive 3D audio from the AVRX2800H. Fill medium-size rooms with more refined sound from a 7.2 set up with Dolby Atmos and DTS:X. And with HEOS Built-in, wirelessly stream online music and share with HEOS-enabled speakers in other rooms. High performance discrete 7-channel amplifier Discrete high-current amplifiers on all channels to deliver up to 95W per channel (at 8 ohms, 20-20kHz, THD 0.08%)—enough power to drive any speaker. Immersive audio experience Get immersed in music and movies with Dolby Atmos® and DTS:X® plus Dolby Surround and DTS Neural:X upmixer to optimize legacy content. Advanced 8K home theater 8K video is supported on three of six HDMI inputs and two outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR passthrough. HEOS® Built-in technology Stream music wirelessly to compatible HEOS-enabled components from a variety of streaming services. Add Denon Home speakers to more rooms and control it all with the HEOS app. Technical Specifications Multichannel Surround

DTS HD Master, DTS:X

DTS Neural:X

DTS Virtual:X

Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music

Dolby Surround

Multichannel Stereo

Max. Number of Processing (Pre-Amp) Channels: 7.1

Sound Enhancements

Discrete Power Amplifier

Pure Direct

Audyssey MultEQ XT, Audyssey Dynamic EQ, Dynamic Volume

Compressed Audio Restorer

Network

Media Server

HEOS Wireless Multi-Room Technology

Alexa / Google Voice Assistant / Apple HomePod Compatible

Lossy Formats: MP3, WMA, AAC

Lossless Formats: FLAC, ALAC, WAV

Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)

DSD Audio Streaming (2.8/5.6MHz)

AirPlay 2, TuneIn, Spotify Connect, Pandora, Sirius XM

Roon Tested

HEOS App Control

Compatible with Remote APP for Smart Phones: Denon 2016 AVR Remote

1 Ethernet Port

Wi-Fi & Bluetooth Compatible

HDMI

HDMI Inputs: 6 Back / 0 Front

HDCP 2.3 support

HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB

ALLM (Auto Low Latency Mode) Pass-through for gaming

Variable Refresh Rate, Quick Flame Transport

3D Signal Pass-through

8K Signal Pass-Through, Scaling, GUI Overlay

Audio Return Channel (ARC), Enhanced ARC

Auto LipSync

Multi-Room CI

2 Multi-Room Zones

Zone Audio Source: HDMI (2ch); Optical (2ch), Coax, Network, USB; Analog

Zone Audio Output: Speaker, Pre-Out

IP Control, RS232 Control, Web Control, App Control

Remote In / Out

HDMI Diagnostics

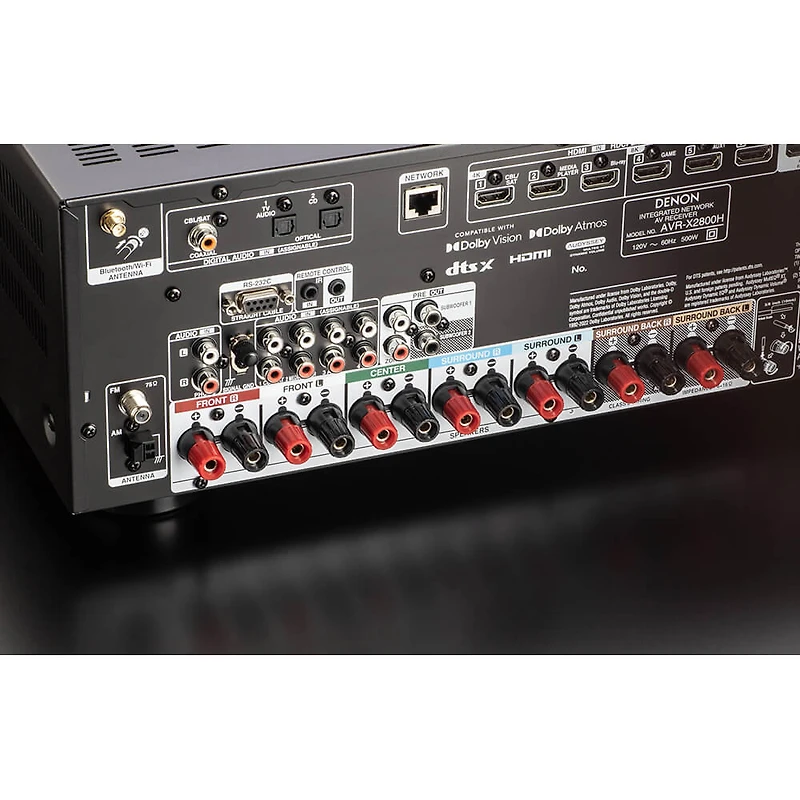

Inputs/Outputs

HDMI In, Out: 6/2

Analog In, Out: 4/0

Phono (MM) In

Digital In: Optical (2), Coaxial(1)

Multi-Room Out: Analog(1), Digital(0)

Multichannel Preout: Yes (0.2)

Subwoofer Out: 2

Speaker Terminals: 7 (Regular Screw)

Speaker A / B: Assignable

Bi-amp Drive: Assignable

Multi-Room Speaker Terminal: Assignable

USB Front Input

AM/FM Tuner

Power Specifications

Number of Power Amps: 7

Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): 95W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 125W

Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 185W

General

System Remote Control: RC-1253

Power Consumption: 500W

Standby Consumption: 0.1W

Maximum Dimensions

Antenna: Horizontal: 17.1"W x 13.4"D x 6.6"H

Antenna: Vertical: 17.1"W x 13.4"D x 9.3"H

W/O Antenna: 17.1"W x 13.0"D x 6.6"H
